High Voltage BMS Integrated 38S121.6V 50A Battery Management System Lifepo4 BMS Lithium BMS For Energy Storage UPS

GCE Integrated BMS Overview:

GCE high voltage BMS offers an intelligent and comprehensive solution for battery management. It enables the connection of battery modules with different string types in series, allowing for higher voltage systems. Our BMS automatically assigns addresses to each connected battery module, simplifying the identification and replacement of damaged cells.

By utilizing DIP switches, multiple battery clusters can be assigned addresses. We support the parallel connection of up to 8 battery clusters, providing flexibility to meet your energy storage needs in MWh. For optimal configuration, we recommend using every 8 battery clusters as a battery bank, allowing for parallel connection of N battery banks.

To accommodate various total string configurations, our BMU is available in 8 series, 12-16 series, and 17-24 series PCB specifications. This ensures an even distribution across your battery strings.

With GCE high voltage BMS, you can efficiently manage your battery system while maximizing performance and scalability.

GCE HV BMS Configuration:

One complete set of HV 38S121.6V 50A BMS includes:

Master BMS, Model#: RBMS07S-38S50A, and its wire accessories, include 6p temperature sensing wires and 16p voltage sensing wires.

There are two different models for integrated BMS, one is a standalone model while the other one is parallel with its cost slightly higher than the standalone model.

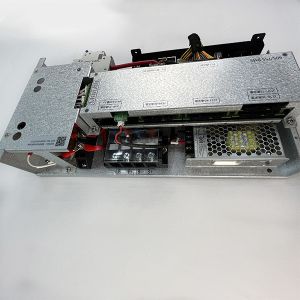

GCE HV Integrated Master BMS and Accessories:

GCE integrated BMS Characteristics:

GCE integrated BMS Technical parameters:

Download linkage of Specification:

GCE 30S-75S integrated BMS specification Ch-EN V2...

High Voltage BMS Application:

FAQs about GCE HV BMS:

• Q. Can you produce BMS with customization requirements?
  A: Yes, based on the order quantity, we can make some small adjustments.
• Q: How does your factory do regarding quality control?
  A: Quality always comes first. All our products go through strict quality control processes from incoming material to the assembling process. Each product will be tested before packing & shipping.
• Q: What Trade Terms are available?
  A: No limitation on the trade terms. We normally do EXW for orders amounts smaller than 5000USD, and FOB for the best ones. Moreover, we can send BMSs via DHL&UPS&FEDEX quickly and easily.
• Q: Is your BMS easy and convenient to install and test?
  A: This is our 4th generation high voltage bms. It's an overall BMS solution, that is to say, you don't need professional technology to install our high-voltage BMS to form a complete battery system.
• Q: What benefits do customers get?
  A: Our high voltage BMS has complete battery charge and discharge control logic and balance function between batteries. We can also set various parameters of the system according to the actual needs of customers to ensure the stability, reliability, and efficient performance of the system.

Hunan group control energy technology Co., Ltd. (GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment.

working in the factory:

 The high-performance intelligent lithium battery management system produced by our company adopts the international leading technology, which greatly improves the battery management efficiency and prolongs the service life of lithium battery. The advanced BMS control strategy avoids the difficulties and instability faced by most competitors for our BMS.

4S to 24s low voltage software BMS has a wide range of uses, rich product interfaces, strong scalability and secondary development compatibility; 30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium battery demand of multiple strings of small capacity batteries. Greatly reduce the use cost of users; 60s-270s adopts master-slave three-level architecture, which can meet the series and parallel requirements of high-capacity single lithium batteries within 1000V.

By mastering the core technology of BMS and inventing on this basis, our company has developed a variety of lithium battery peripherals to meet the high-quality needs of the market.
