Home ESS BMS Stackable High Voltage LifePO4 BMS Energy Storage System

Ask Lasest Price
Brand Name :	GCE
Model Number :	RBMS-Tower50A300V
Certification :	CE
Price :	negotiate with：wenglin@hngce.com, WhatsAPP me: +86-15570747076
Supply Ability :	2000 sets per month
Delivery Time :	25 days

Add to Cart

Product Details
Company Profile

Home ESS BMS Stackable High Voltage LifePO4 BMS Energy Storage System

HomeESS BMS Stackable High Voltage LifePO4 BMS Energy Storage System

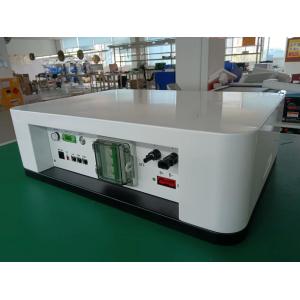

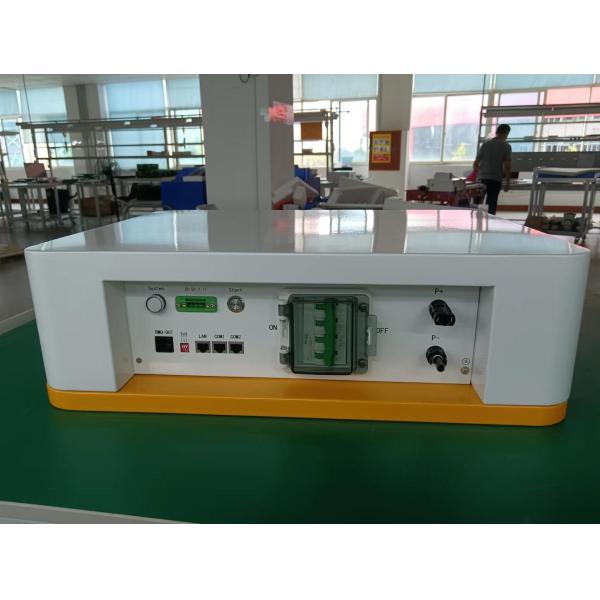

The StackableRBMs product is a battery management system developed for the application of a household
high-voltage battery energy storage system. It adopts distributed architecture, a modular design concept, and is stacked up and down for plug-in connection and installation.

It is highly configurable and easy to assemble, debug and maintain.

It is suitable for various battery energy storage systems with DC voltage below 700V. This product is configured as a two-level architecture (BMU+RBMS) +PCS/Inverter.

The product has safe and reliable operation and protection strategies to effectively extend the service life of the battery pack.

It is equipped with a variety of communication modes, which can be directly connected with pcs/inverter communication.

Accessorise:


12S-24S BMU(Slave) 12S-24S BMU has 8pcs of tempreture sensors, Fan voltage 48V(17S-24S 12V), voltage detection range 0-5V,12V power supply,consumption less 20mA, CAN2.0 B communication	Wire harness-Signal acquisition wire 18 Pin+20Pin wire, standard length is 600mm,900mm,1200mm tempreture sensor wire: standard length is 600mm,900mm,1200mm Fan wire: 600mm	Wire harness-communication wire Communication wire is connecting from master BMS to each BMU with cascade connection, the last port is for terminal resistance

Product Features:

※high safety design - circuit breaker + fuse double short circuit protection; Insulation resistance detection and monitoring system leakage.
※ advanced battery management system --- the highly integrated battery management system can realize seamless monitoring.
※ complete self-inspection and operation status detection functions, combined with HMI display, make the system operation information clear at a glance.
※ perfect and reliable system control and protection strategies to comprehensively ensure battery safety and protect the battery pack to prolong its service life.
※ modular design, wide voltage operation range --- multiple energy storage battery modules can be flexibly combined, which can be expanded into a larger household energy storage system and can support up to 190 LFP batteries in series.
※there are rich communication interfaces - - RS485, can, Ethernet, dry contact input, and output interfaces, which support communication with most PCs in the market, and can freely switch communication protocols through the display screen.
※ flexible communication interface protocol - the company's communication protocol comes with the factory, and PCs from different manufacturers can also be adapted according to customer needs.
※ large capacity comes with capacity --- the built-in large capacity memory chip can store a large number of key operational data, and an SD card can be added to realize the storage of battery historical data
※ automatic circulating current control and automatic parallel / offline control can easily realize the parallel connection of battery packs.

※ WiFi function can be selected to facilitate cell phone or cloud to view battery data and remote battery management.

Product Specification:

Product name	Stackable RBMS
Rated Current	50A
Operating Voltage	100V-700V
Power Consumption	≤15W
Current sampling accuracy	1%FSR
Insulation Withstand voltage	2800VDC ＜1mA 1min
IP Degree	IP20
Net Weight	~15Kg
Communication port with BMU	CAN
Communication port with PCS/Inverter	RS485/CAN
Communication mode with monitoring software	Ethernet
Battery charge and discharge management	Support
String of single battery pack	Ranging from 12s to 24s
Battery temperature management	Available
Balancing method	Passive balancing
IAP Upgrade	Available
System protection parameters setting	Available
Short circuit protection	Circuit breaker (6KA) + Fuse (10KA)
Pre-charge Function	Available
Parallel circulating current control	Available
Events Recording	5000 events records
Pcs/inverter protocol selection	Available (display setting switching protocols)
DC Start	Support (battery power)
Insulation Monitor	Optional
Wifi	Optional
HMI Display	4 inches (in-chassis mounted)
Standalone or Parallel connection	Can be switched through parameter setting, maximum 4 parallels.
Dry Contact	Maximum 2 roads of output dry contact
Color	Ivory white
Installation method	Stacked docking
Incoming and outgoing mode of Wires	Down in back out
Operating ambient temperature	-20℃~60℃
Operating ambient humidity	5%~75%RH
National Standards Confirms To	GB/T 16935.1 GB/T 17626.2 GB/T 17626.5
Safety certification	Comply with CE certification standards

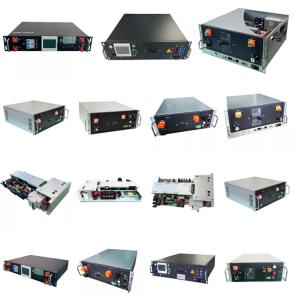

Other BMS We Made:

2U BMS:	3U BMS
Voltage Range:120V-680V Protecting method: MCCB+Contactor Rated Current range: -125A~125A Voltage Range: 120V-680V Current Sampling Accuracy: 1.0%FSR Communication interface with BMU: CAN Communication interface with UPS&SBMS:RS485/CAN Communication with monitoring software/EMS: Ethernet Support HMI display and parameter: Yes(Optional) Dry contact output :Up to 3 Maximum qty of BMUs:13 Power consumption:≤15W Size:3U (482132500mm) Net weight:~15kg UPS ESS high voltage BMS(HV BMS) , Lithium Ion BMS	Protecting method: MCCB+Contactor Rated Current range: -125A~125A Voltage Range: 120V-680V n Current Sampling Accuracy: 1.0%FSR Communication interface with BMU: CAN Communication interface with UPS&SBMS:RS485/CAN Communication with monitoring software/EMS: Ethernet Support HMI display and parameter: Yes (Optional) Dry contact output :Up to 3 Maximum qty of BMUs:13 Power consumption:≤15W Size:3U (482132500mm) Net weight:~15kg UPS ESS high voltage BMS(HV BMS) , Lithium Ion BMS

4U BMS:	5U BMS:
Voltage Range:384V-1000V Protecting method: MCCB+Contactor Rated Current range: -250A~250A Voltage Range: 384V-1000V Current Sampling Accuracy: 1.0%FSR Communication interface with BMU: CAN Communication interface with UPS&SBMS:RS485/CAN Communication with monitoring software/EMS: Ethernet Support HMI display and parameter: NO(Optional plug in) Dry contact output :No Maximum qty of BMUs:20 Power consumption:≤15W Size:4U (482180500mm) Net weight:~22kg UPS ESS high voltage BMS(HV BMS) , Lithium Ion BMS	Voltage Range:384V-1000V Protecting method: MCCB+Contactor Rated Current range: -500A~500A Voltage Range: 384V-1000V Current Sampling Accuracy: 1.0%FSR Communication interface with BMU: CAN Communication interface with UPS&SBMS:RS485/CAN Communication with monitoring software/EMS: Ethernet Support HMI display and parameter: NO(Optional plug in) Dry contact output :No Maximum qty of BMUs:20 Power consumption:≤15W Size:5U(482220500mm) Net weight:~32kg UPS ESS high voltage BMS(HV BMS) , Lithium Ion BMS

Center Tap BMS:	Integrated BMS:
Voltage Range: 192V(±96V), 288V(±144V), 384V(±192V), 480V(±240V), 576V(±288V), 672V(±336V), 768V(±384V), 864V(±432V) Protecting method: MCCB+Contactor Rated Current range: -250A~250A Voltage Range: 192V(±96V)~864V(±432V) Current Sampling Accuracy: 1.0%FSR Communication interface with BMU: CAN Communication interface with UPS&SBMS:RS485/CAN Communication with monitoring software/EMS: Ethernet Support HMI display and parameter: NO(Optional plug in) Dry contact output :No Maximum qty of BMUs:20 Power consumption:≤25W Size:4U (482180500mm) Net weight:~22kg UPS ESS high voltage BMS(HV BMS) , Lithium Ion BMS	Strings:30-75S Current:50A,100A System Operating Voltage Range:120V-370V Battery Strings: 30S-75S SOC: ≤5% Communication Mode: RS485/CAN Hall Sensor Specifications: 50A/100A Charging Temperature: -10~75℃ Discharging Temperature: -20~75℃ Power consumption:≤10W Size:410232128mm) Net weight:~4.5kg UPS ESS high voltage BMS(HV BMS) , Lithium Ion BMS

Contact Us:

GCE is a professional high voltage life4po BMS muanfacturer,

Made BMS voltage from 48V to 1000V with master and slave three-level structure solution,

12S-24S lithium battery BMS, battery storage BMS for energy storage system,UPS,ESS,off-gird/Hybrid solar system,Grid-Tie solar system solution proivder.

Application:

Battery Energy Storage System(BESS)

Off-grid energy storage

Data Center

Grid frequency modulation energy storage

Track power / traction

LFP UPS power supply
