UPS 384V 63A 120S HV Lifepo4 BMS Building Energy Management System
Model Number: RBMS07S3-0-63A384V
Phase: Three Phase
Protection: Short Circuit
Weight: 25kg
Type: BMS
Application: UPS/BESS
Product name: Lithium UPS BMS
Appplication: UPS with center tap
Input Voltage: +/- 192V(384v)
Current: 63Amp-630Amp
Battery type: LFP,NMC,LTO
Feature: AC/DC dual power suply
Communication: RS485 TCP/IP CAN DYR CONTACT
Protect: charge and discharge
Warranty: 3years
Place of Origin: Hunan, China
UPS Com Port Definition
Please use five or more types of network lines, the sequence can be
according to the standard
TIA-586A or TIA-568B as show below:
Application Scenario
- PV power plant storage
- Island off-grid energy storage
- optical storage charge integration applications
- Micro-grid applications
- UPS power supply
- Power System 220V DC power supply
- Rail transit 110V DC power supply
Specification
Product Name | BMS |
Model no. | RBMS07S3-0-63A384V |
protecting method | MCCB+Contactor |
Rated Current range | -63A~63A |
Voltage Range | 96V-384V |
Current Sampling Accuracy | 1.0%FSR |
Communication interface with BMU | RS485/CAN |
Communication interface with BMU | CAN |
Communication interface with BMU | RS485/CAN |
Communication with monitoring software/EMS | Ethernet |
Support IAP upgrade | Yes |
Support HMI display and parameter | No(Optional plug in) |
Insulation detection | Yes(Optional) |
High voltage power module | Support DC start (optional) |
Dry contact output (normally open) | No |
Maximum qty of BMUs | 20 |
Power | 24VDC(18~28V) |
Power consumption | ≤20W |
Size(W*H*D)mm | 4U (440*178*600) |
Way out | Front |
Tap center | Support(Optional) |
Net weight | 23kg |
* RS485, CAN, LAN, Dry contact

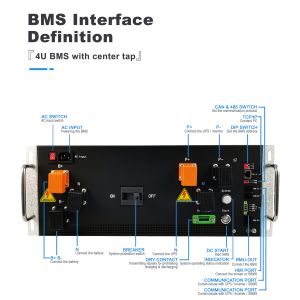

* 4U standard 19inch case * Efficient, stable and reliable *
size:W440*D500*H178mm 12S-24S BMU(Slave)
12S-24S BMU has 8pcs of tempreture sensors, Fan voltage 48V(17S-24S
12V), voltage detection range 0-5V,12V power
supply,consumption less 20mA, CAN2.0 B communication
Wire harness-Signal acquisition wire
18 Pin+20Pin wire, standard length is 600mm,900mm,1200mmtempreture
sensor wire: standard length is 600mm,900mm,1200mm
Fan wire: 600mm
Wire harness-communication wire
Communication wire is connecting from master BMS to each BMU with
cascade connection, the last port is for terminal resistance
Hunan Group Control Energy Technology Co., Ltd.(GCE) is a high-tech
company specializing in the research and development of BMS and
lithium battery peripheral equipment. The high-performance
intelligent lithium battery management system produced by our
company adopts the international leading technology, which greatly
improves the battery management efficiency and prolongs the service
life of lithium battery. The advanced BMS control strategy avoids
the difficulties and instability faced by most competitors for our
BMS.
4S to 24s low voltage software BMS has a wide range of uses, rich
product interfaces, strong scalability and secondary development
compatibility; 30s to 75s BMS adopts master-slave integrated design
and relay solution to meet the lithium battery demand of multiple
strings of small capacity batteries. Greatly reduce the use cost of
users; 60s-270s adopts master-slave three-level architecture, which
can meet the series and parallel requirements of high-capacity
single lithium batteries within 1000V.
